Tower Panel
The standard cooling tower panel is magnesium-aluminum-zinc steel plate (optional Z700 heavy galvanized steel plate, ordinary galvanized steel plate and SUS304 stainless steel plate), all of which are made of national standard materials without negative difference. Excellent anti-corrosion performance.
Main structure
The frame is made of high-quality high-strength hot-dip galvanized steel, with an integral column design, supplemented by a reasonably arranged beam and inclined-stayed device to enhance the stability of the tower structure. The design of the long-span beam has been calculated in detail by professional designers and verified by the physical model. The deflection value of the whole series is controlled within the standard reliable range.

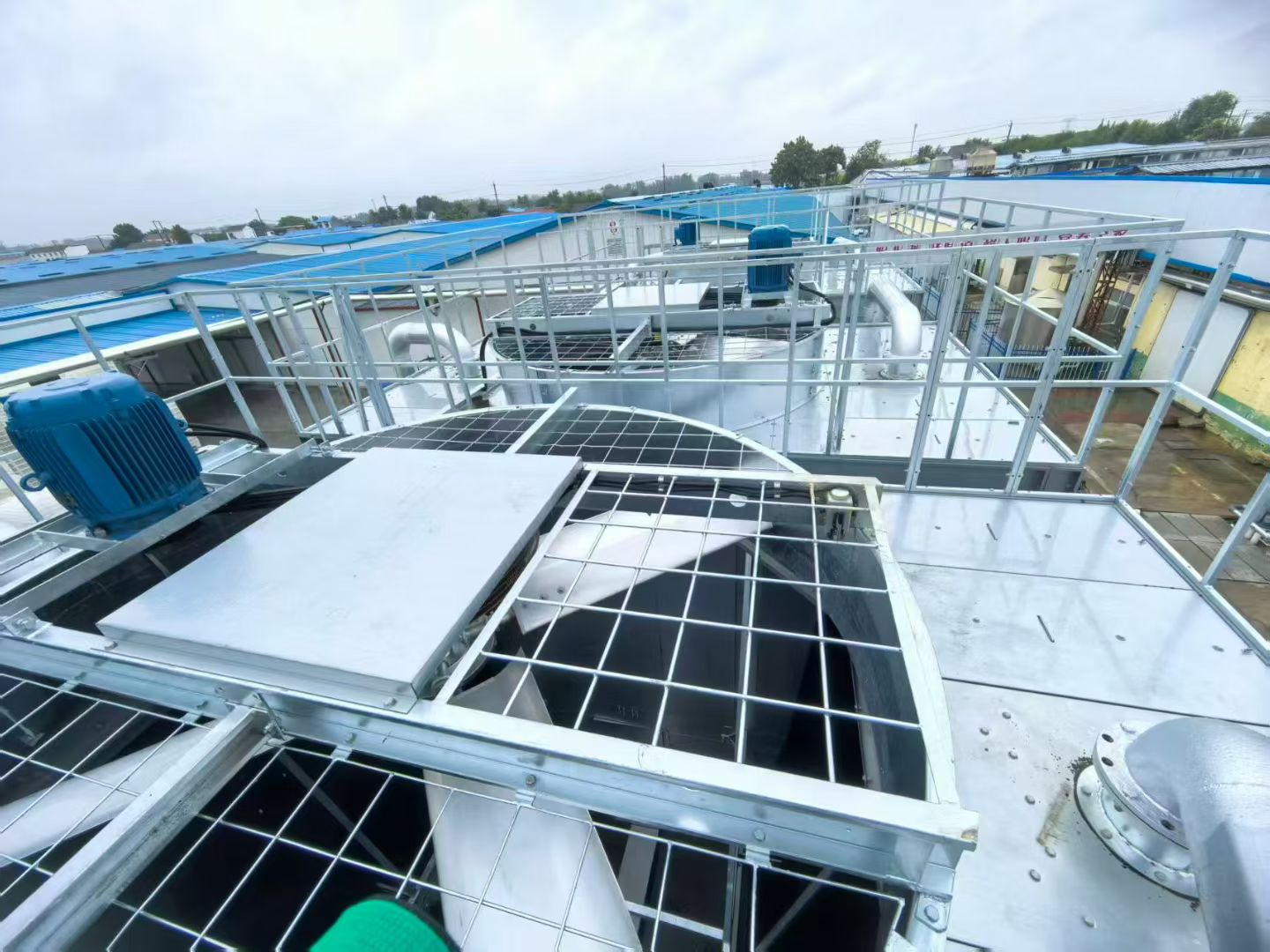

Exhaust fan
A special fan for aluminum alloy/glass fiber reinforced plastic is used, which is tested for dynamic and static balance before leaving the factory. The fan adopts a large air volume design, the fan angle is adjustable, and the fan noise meets the national standard noise requirements.
Drive motor
Adopt IP55 housing protection level, F-class insulation, B-class temperature rise special waterproof motor, maintenance-free except for normal refueling, reducing customer use and maintenance costs.
Transmission mode
The belt or gear reducer combination is traditional, the wear parts are cheap, and the use and maintenance costs are low. The reducer has high manufacturing precision, high transmission efficiency, low noise, long effective use period of the equipment, and convenient maintenance and repair.
Sprinkling filler
Adopting PVC raw materials, high heat exchange efficiency, reasonable texture water channel design, not easy to block, low wind resistance coefficient, reasonable air-water ratio, hanging installation, stacked combination, easy maintenance and replacement.
Anti-drifting measures
Effective water blocking measures are taken in the spraying area to ensure that the lateral airflow will not interfere with the spraying water flow. The inlet and outlet of the filler have their own honeycomb-shaped combined edges, which are strictly designed according to the optimal economic wind speed. The air-water exchange flow characteristics are used to avoid the "splashing" phenomenon of sprinkler water and reduce drifting losses.
Water distribution system
The pool-type water distribution system is used with variable flow nozzles to effectively ensure the uniformity of water distribution.
Intelligent control (optional)
The control system integrates sensor technology, automatic control technology and information processing technology, and has water temperature monitoring, stepless automatic energy-saving operation, variable flow operation, anti-freezing operation, water quality monitoring, motor and fan monitoring functions, providing efficient, energy-saving and reliable operation guarantee for your cooling tower.
